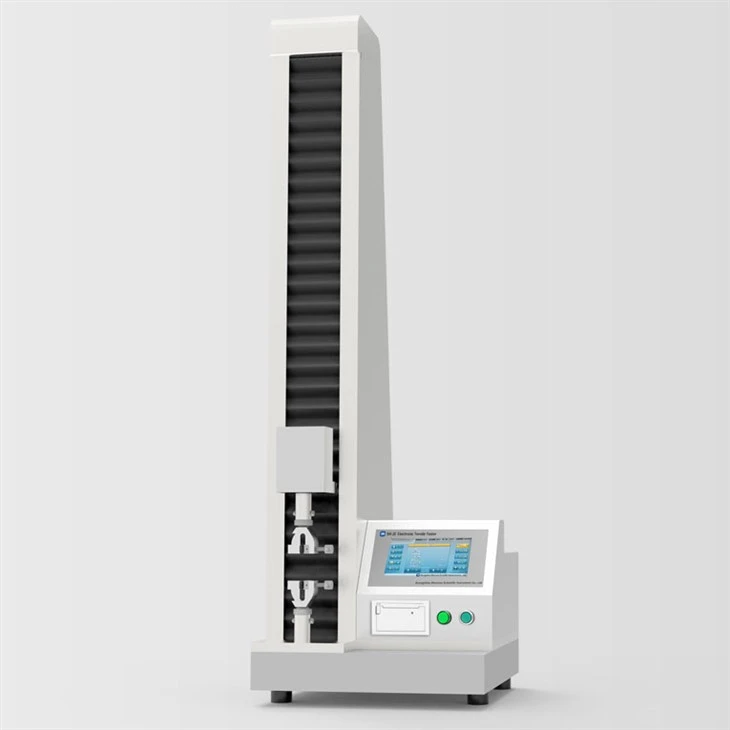

SN-2E Electronic Tensile Tester
Compression Testing Machine is widely used in plastic film, food, drug production enterprises, new material production enterprises, product quality control and testing institutions, scientific research and teaching experiments in schools.Load testing equipment is crucial for evaluating the performance, durability, and safety limits of materials, structures.Comprehensive test function, can do tensile, stripping, heat seal, tear and other tests. Sample thickness, fixture distance and other parameters can be freely set.
GB 8808, GB 13022, GB/T 1040, GB/T 7753, GB/T 7754, GB/T 453, GB/T 17200, GB/T 16578.1, QB/T 1130, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 10004, GB/T 17590, JJG 139, GB/T 6344, GB 10808, YBB 00112003, YBB 00102003, YBB 00132002, YBB 00202004, ASTM D828, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358
Suitable for testing mechanical properties such as tensile, peeling, heat sealing, and tearing of various materials, including plastic films, paper-aluminum-plastic composite films, adhesive tapes, flexible packaging materials, rubber sheets, paper, and non-woven fabrics. It offers high precision, easy operation, intuitive results, and high reliability. Meeting the technical requirements of national supervision departments, it is widely used for quality control in industries such as plastic films, food, pharmaceuticals, and new materials, as well as in research institutions and universities.
The specimen is clamped between two grips that move relative to each other. A force sensor on the moving grip and a built-in displacement sensor collect data on force and displacement changes during the test. These data are then used to calculate performance indicators such as tensile strength, tearing strength, and deformation rate.
- Comprehensive test functions, capable of performing tensile, peeling, heat sealing, and tearing tests. Multiple parameters such as specimen thickness and grip distance can be freely configured.
- Equipped with multi-level protection devices for safe and reliable operation; the small lead screw design ensures enhanced durability.
- Core components are imported to ensure high precision.
- Touchscreen operation provides enhanced convenience and intuitive data display.
- Calibration parameters are password-protected to prevent accidental modification.
- Stepless speed regulation allows for adjustable test speeds.
|
|
|
|
|
0-300 N |
|
|
1% FS |
|
|
800 mm |
|
|
0–300 mm/min (Freely Adjustable) |
